Description
The PH-10 is extremely user-friendly, with nine different loads options (10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ) and 3 different EQ curves to allow you to get the very best sound from all of your vinyl records. Like every Gold Note product, the PH-10 comprises of components exclusively sourced and assembled in Italy.
What Gold Note say
The Extraordinary Phono Stage
The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.

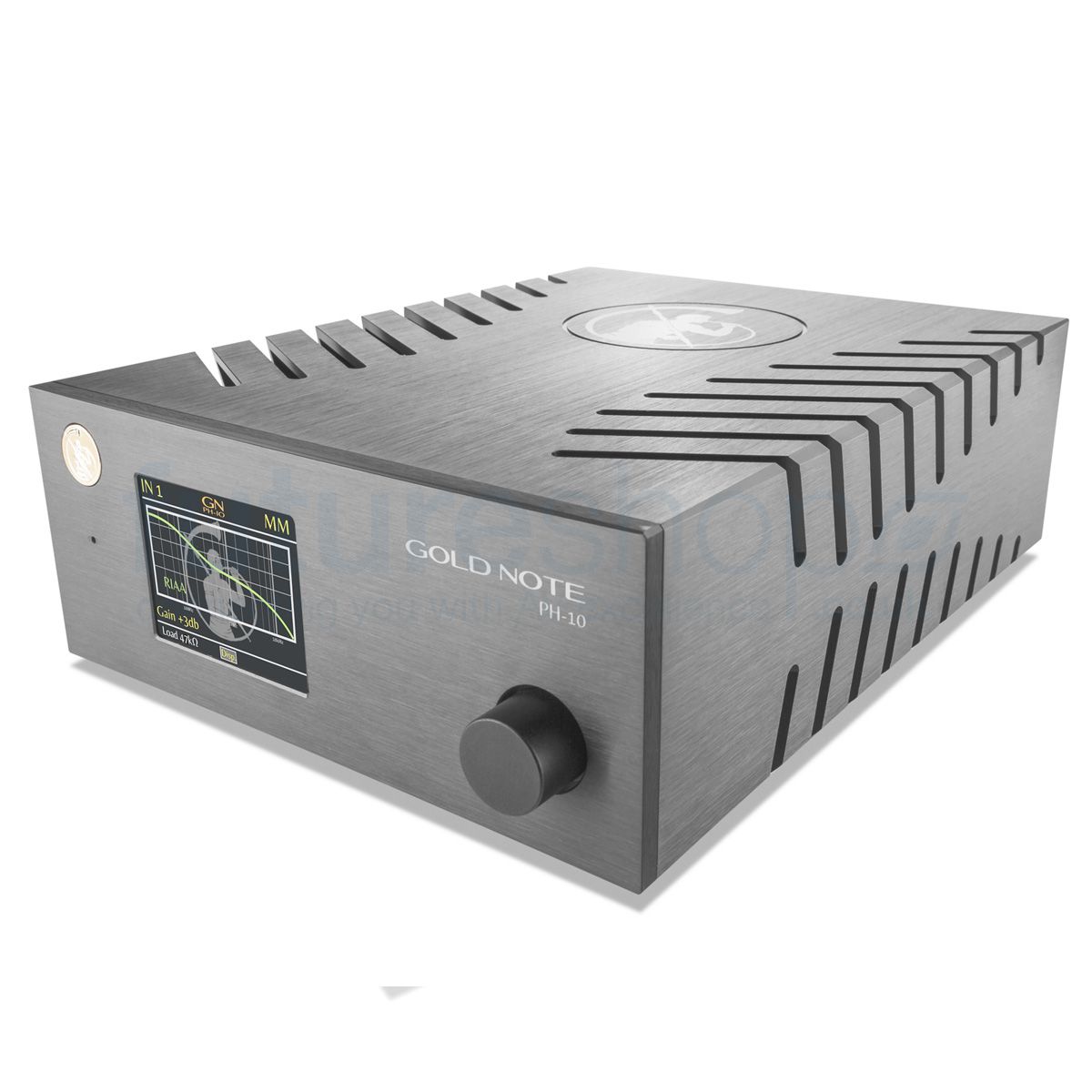

To control the PH-10, Gold Note developed the user-friendly Single Knob Control (SKC). Combined with the color display this rotary joggle allows quick adjustments of any function in real-time during music playback.
The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON, or the AMERICAN COLUMBIA, and all selection appears clearly on the display.
Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.
The Perfect Cartridge Matching
9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ] and 4 different selectable GAIN options [0dB, ± 3dB, +6dB] will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.
Connect Two Separate Tonearms
With its two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off, guaranteeing flexibility and impressive user-friendliness. It can also be improved by an external PSU.
PH-10 at its Best
To maximize the performance of the PH-10 Gold Note have also developed the PSU-10, a dedicated external super inductive power supply that allows the phono stage to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics, and greater three-dimensionality sound.
Features
- Equalisation Curve Control
- 3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
- Infrasonic Filter
- 10Hz/36dB octave
- Frequency Response
- 20Hz /20kHz
- [Enhanced 20Hz-50kHz] @ +/-0.3dB
- THD (Total Harmonic Distortion)
- <0.05% @1kHz
- Signal to Noise Ratio
- 89dB
- Dynamic Response
- 105dB
Specification

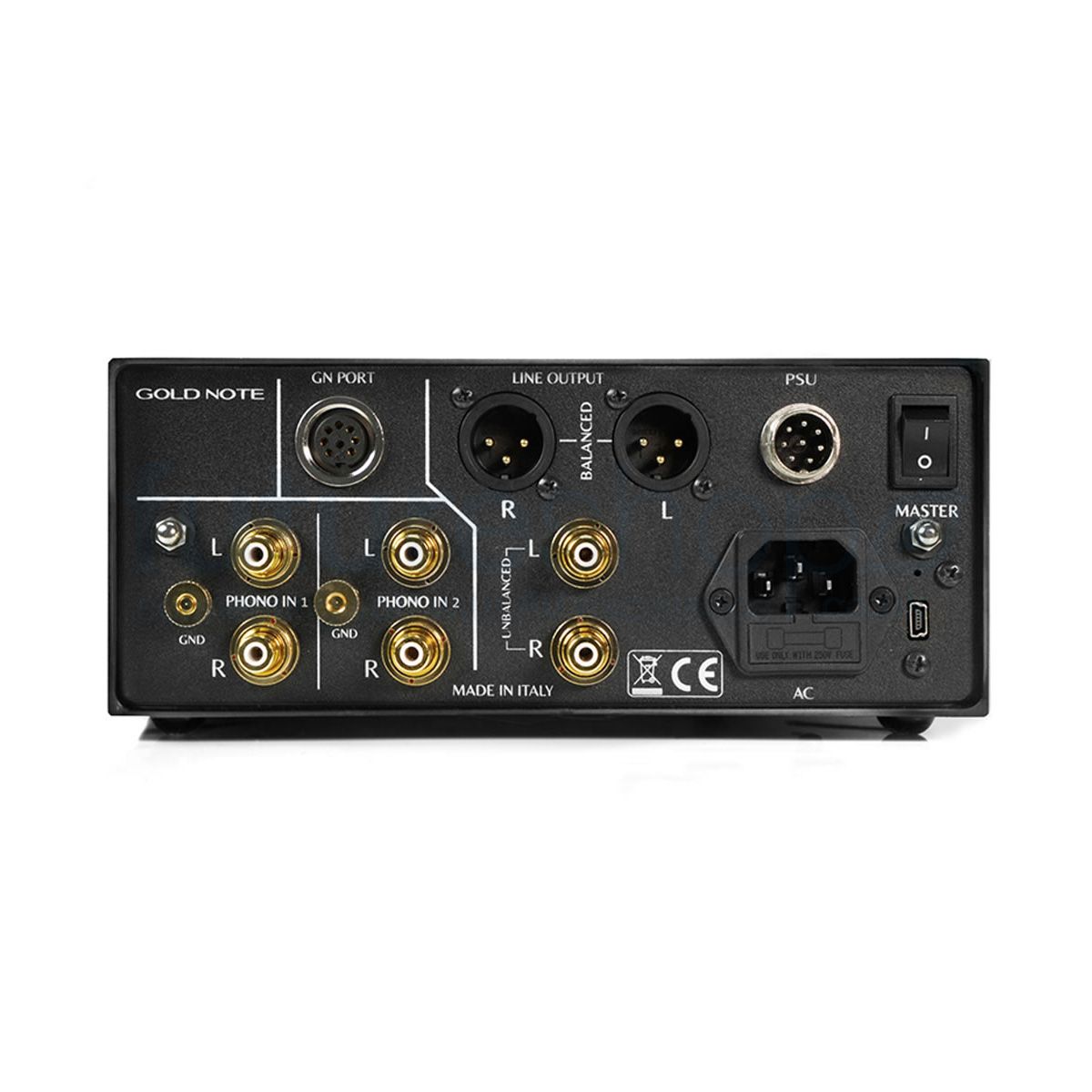

Inputs and Outputs
- Analogue Inputs: MM/MC two independent stereo RCA
- Input Sensitivity: 0.1mV MC up to 10.0mV MM
- Input Impedance: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
- Gain: 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
- Capacitance (MM ONLY): 220pF
- Audio Outputs:
- 1x unbalanced RCA
- 1x balanced XLR
- Line Level Outputs (fixed):
- RCA @ 2V
- XLR @4V
- Output Impedance: 50Ω
Power
- Power Consumption: 10W Super Linear supple
- Standby Consumptio: <0.5W
- Power Supply: 100-120V or 220-240V, 50/60Hz
- Fuse: 0.5A F/T
Dimensions:
- 200W | 80H | 260D mm
- 290W | 180H | 390D mm – boxed
- Weight:
- 3kg – net
- 4kg – boxed
